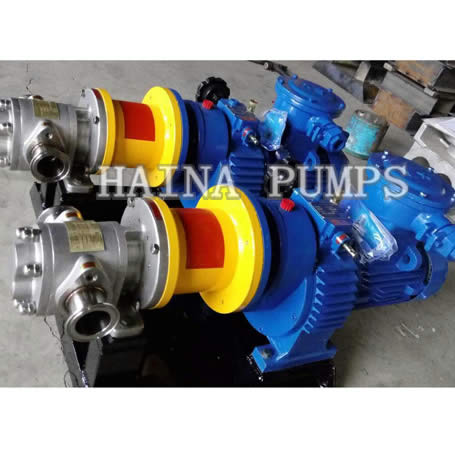

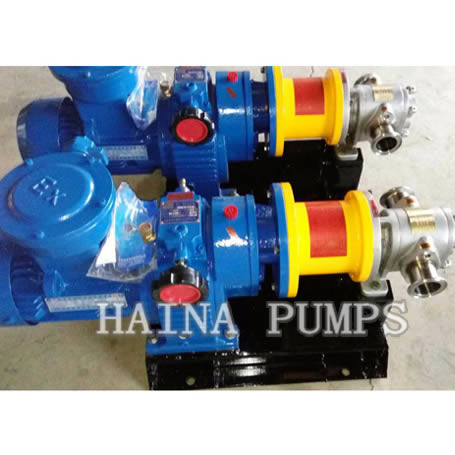

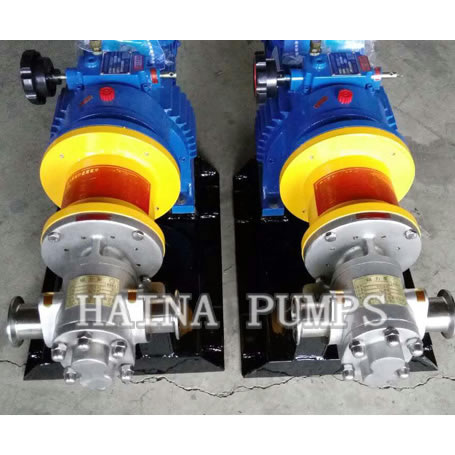

MCK magnetic dive gear pump is zero leakage magnetic pump, compact structure, beautiful shape, small volume, low noise, reliable operation, easy to use longitudinal.Can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, film photography, scientific research institutions, defense industry made pumping units such as acid, alkali, oil, rare precious liquid, venom, volatile liquid, and circulating water to form a complete set of equipment, filter machine.Especially easy to leak, inflammable, explosive liquid pumping, select the pump is more ideal.haina brand magnetic drive gear pump (heat-resistant 250 ℃ or less) (hereinafter referred to as magnetic pump) is the application of the working principle of magnetic couplings in the new product of the gear pump, the main material is stainless steel.Reasonable design, advanced technology, has the full seal, no leakage, corrosion resistance, the characteristics of its performance reach the advanced level of domestic similar products.
| Model | Flow | pressure | (NPSH)r
m |
Inlet/outlet
mm |
Speed | Motor | |
| m3/h | L/min | Mpa | Nr/min | kw | |||
| MCK-18.3 | 1.1 | 18.3 | 1.45 | 5 | G3/4″ | 1400 | 1.5 |
| MCK-33.3 | 2 | 33.3 | 1.45 | 5 | G3/4″ | 1420 | 2.2 |
| MCK-55 | 3.3 | 55 | 0.33 | 5 | G1″ | 1400 | 1.5 |
| MCK-83.3 | 5 | 83.3 | 0.33 | 5 | G1/2″ | 1420 | 2.2 |
| MCK-135 | 8 | 135 | 0.33 | 3 | Φ50 | 1440 | 4 |
| MCK-200 | 12 | 200 | 0.33 | 3 | Φ50 | 1440 | 4 |
| MCK-300 | 18 | 300 | 0.36 | 3 | Φ70 | 960 | 5.5 |
| MCK-483.3 | 29 | 483.3 | 0.36 | 3 | Φ70 | 1440 | 7.5 |
| MCK-633 | 38 | 633 | 0.28 | 3 | Φ100 | 970 | 11 |
| MCK-960 | 58 | 960 | 0.28 | 3 | Φ100 | 1470 | 18.5 |
| MCK-1200 | 72 | 1200 | 0.28 | 2 | Φ150 | 740 | 37 |
| MCK-1600 | 96 | 1600 | 0.28 | 2 | Φ150 | 980 | 45 |
| MCK-1800 | 110 | 1800 | 0.28 | 2 | Φ200 | 740 | 55 |
| MCK-2500 | 150 | 2500 | 0.28 | 2 | Φ200 | 980 | 75 |
| MCK-3800 | 230 | 3800 | 0.28 | 2 | Φ250 | 990 | 110 |
| MCK-5400 | 325 | 5400 | 0.28 | 2 | Φ250 | 990 | 110 |
